TIL 팀프로젝트 발제, ERD, API명세, 와이어프레임

오늘은 팀원들과 의논해서 팀프로젝트 구현에 앞서 프로젝트 설계를 했다.

팀원들 말을 들어보니 나만 이번 심화주차 내용들을 다 이해 못한게 아니라서 다행이었다는...



그래서 다음주에 개발해볼 설계 내용이다.

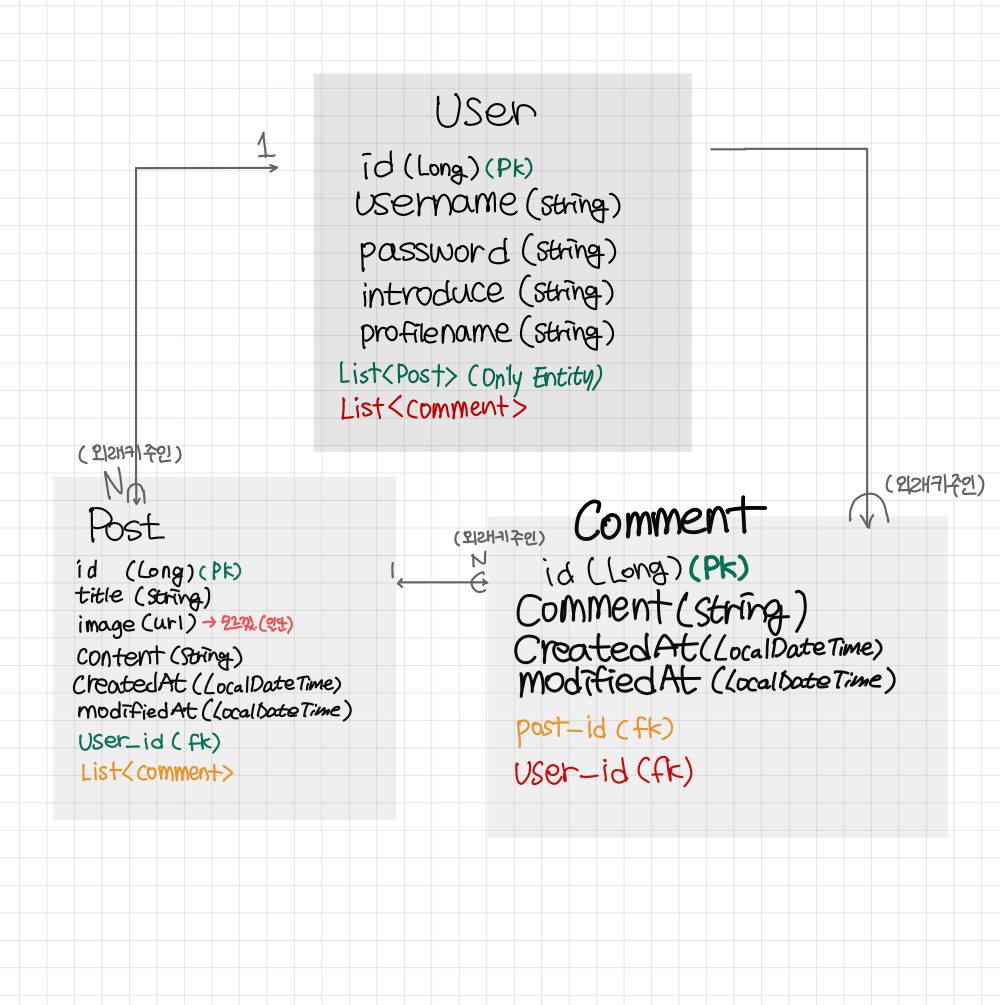

ERD

ERD

ERD를 그려주신건 슬기님... 아이패드 갓..

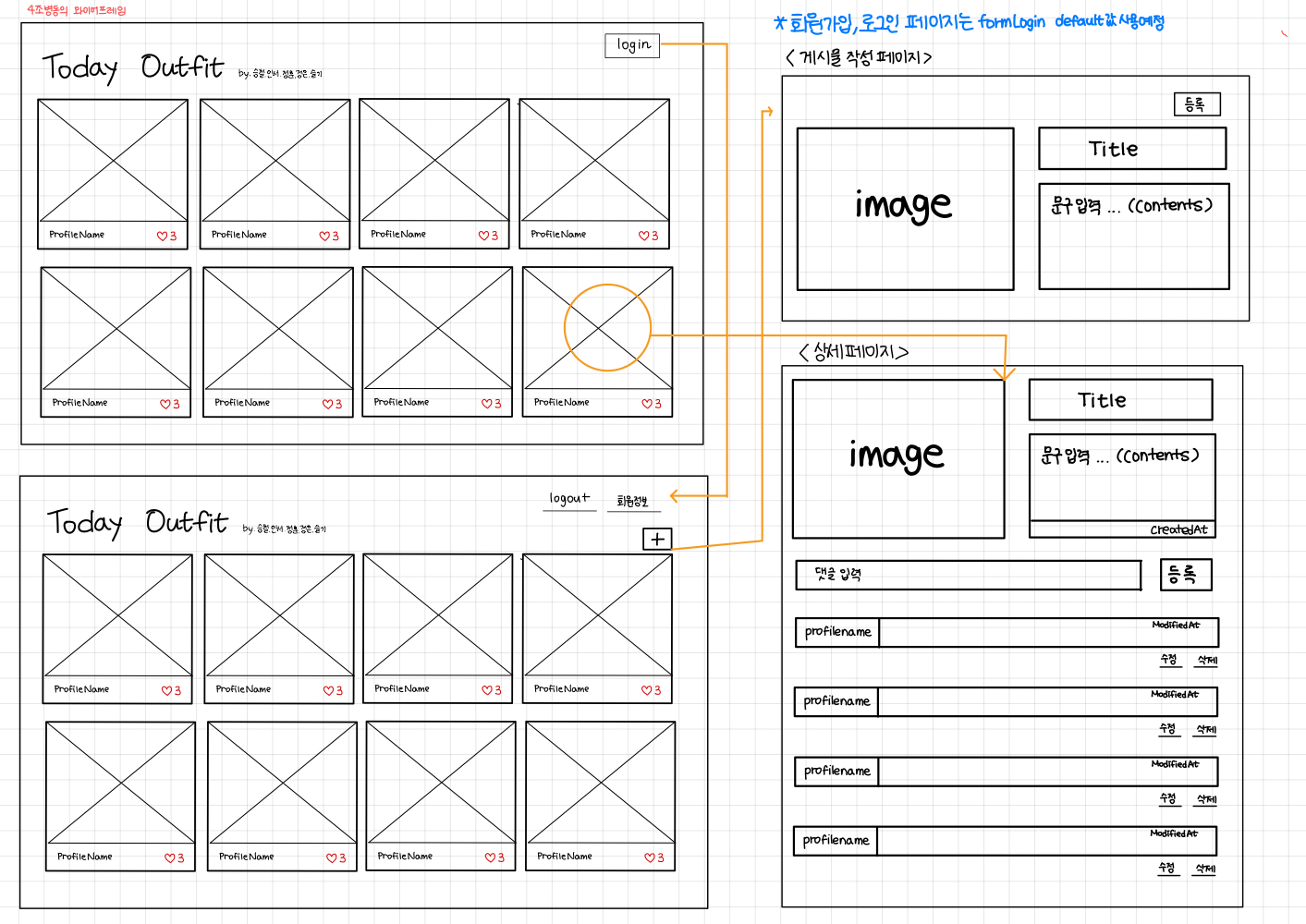

와이어프레임도 완성했다.

와이어 프레임



와이어 프레임

여기서도 수고해주신 슬기님과 아이패드...



API명세



기능	Method	URL	RequestHeader	Request	Response	ResponseHeader
회원가입	POST	/api/user/signup		{ ”username” : “leee”, ”password” : “1234”, ”profilename” : “seung”, ”introduce” : “안녕하세요” }	{ "msg": "회원가입 성공", "statusCode": 200 }
프로필 수정	PUT	/api/profile	Authorization: Bearer eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJiaW4xMjM0IiwiZXhwIjoxNjY5ODcwNDUyLCJpYXQiOjE2Njk4NjY4NTJ9.mm8wgaV8M70hidhPX4Ut6UONZGaxjA1KnOJT1mO59Xc	{ ”profilename” : “seung2”, ”introduce” : “안녕요” }	{ ”profilename” : “seung2”, ”introduce” : “안녕요” }
비밀번호 수정	PUT	/api/profile/password	Authorization: Bearer eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJiaW4xMjM0IiwiZXhwIjoxNjY5ODcwNDUyLCJpYXQiOjE2Njk4NjY4NTJ9.mm8wgaV8M70hidhPX4Ut6UONZGaxjA1KnOJT1mO59Xc	{ ”password” : “1234”, ”newpassword” : “4321” }	{ "msg": "비밀번호 수정 성공", "statusCode": 200 }
로그인	POST	/api/user/login		{ "username": "seulgi12", "password": "a1234" }	{ "msg": "로그인 성공", "statusCode": 200 }	Authorization: Bearer eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJiaW4xMjM0IiwiZXhwIjoxNjY5ODcwNDUyLCJpYXQiOjE2Njk4NjY4NTJ9.mm8wgaV8M70hidhPX4Ut6UONZGaxjA1KnOJT1mO59Xc
로그아웃	POST	/api/user/logout			{ /redirect:/ }
게시물 전체 조회 (뉴스피드 기능)	GET	/api/post			{ "id": 1, ”title": "게시글1", ”image” : “url/image”, "username": "bin1234" } { "id": 2, ”title": "게시글2", ”image” : “url/image” "username": "bin12345" } { "id": 3, ”title": "게시글3", ”image” : “url/image” "username": "bin123456" }
게시물 단건 조회	GET	/api/post/{id}			{ "id": 1, ”title": "게시글1", ”image” : “url/image”, "content": "내용1", "username": "bin1234", "createdAt": "2022-12-01T12:52:06.729608", "modifiedAt": "2022-12-01T12:52:06.729608" }
게시물 생성	POST	/api/post	Authorization: Bearer eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJiaW4xMjM0IiwiZXhwIjoxNjY5ODcwNDUyLCJpYXQiOjE2Njk4NjY4NTJ9.mm8wgaV8M70hidhPX4Ut6UONZGaxjA1KnOJT1mO59Xc	{ ”title": "게시글1", ”image” : “url/image”, "content": "내용1" }	{ /redirect:/ }
게시물 수정	PUT	/api/post/{id}	Authorization: Bearer eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJiaW4xMjM0IiwiZXhwIjoxNjY5ODcwNDUyLCJpYXQiOjE2Njk4NjY4NTJ9.mm8wgaV8M70hidhPX4Ut6UONZGaxjA1KnOJT1mO59Xc	{ ”title": "게시글2", ”image” : “url/image”, "content": "내용3" }	{ /redirect:/ }
게시물 삭제	DELETE	/api/post/{id}	Authorization: Bearer eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJiaW4xMjM0IiwiZXhwIjoxNjY5ODcwNDUyLCJpYXQiOjE2Njk4NjY4NTJ9.mm8wgaV8M70hidhPX4Ut6UONZGaxjA1KnOJT1mO59Xc		{ /redirect:/ }
댓글 작성	POST	/api/comment	Authorization: Bearer eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJiaW4xMjM0IiwiZXhwIjoxNjY5ODcwNDUyLCJpYXQiOjE2Njk4NjY4NTJ9.mm8wgaV8M70hidhPX4Ut6UONZGaxjA1KnOJT1mO59Xc	{ ”postId” : 1, ”comment” : “안이뻐요” }	{ /redirect:/api/post/1 }
댓글 수정	PUT	/api/comment/{id}	Authorization: Bearer eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJiaW4xMjM0IiwiZXhwIjoxNjY5ODcwNDUyLCJpYXQiOjE2Njk4NjY4NTJ9.mm8wgaV8M70hidhPX4Ut6UONZGaxjA1KnOJT1mO59Xc	{ ”comment” : “사실 예뻐요” }	{ /redirect:/api/post/1 }
댓글 삭제	DELETE	/api/comment/{id}	Authorization: Bearer eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJiaW4xMjM0IiwiZXhwIjoxNjY5ODcwNDUyLCJpYXQiOjE2Njk4NjY4NTJ9.mm8wgaV8M70hidhPX4Ut6UONZGaxjA1KnOJT1mO59Xc		{ /redirect:/api/post/1 }
